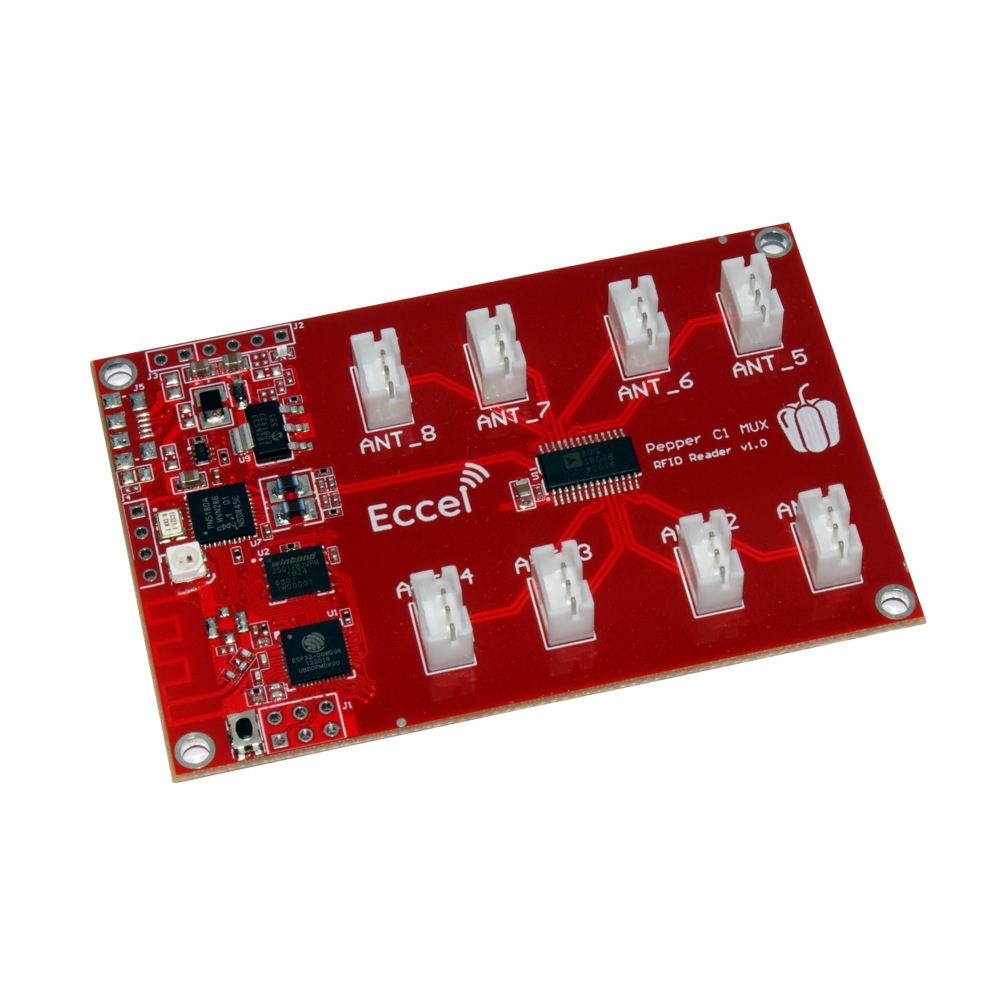

Pepper C1 MUX UART

Name: Pepper C1 MUX UART
Brand: Eccel Technology
SKU: 000461
Price: 46.9 GBP
Availability: InStock

The Pepper C1 MUX UART reader is the multiplexed version of the Pepper C1 – the first Eccel Technology Ltd product with wireless connectivity capabilities. The user can connect up to 8 external (red) RFID antennas. Thanks to the wireless connectivity, the customer receives free lifetime Over-the-Air updates, and of course the communication protocol can be used over TCP instead of the traditional UART/USB interface. Combining these features with standalone mode provides a “straight out of the box” ready to use device for many application. In standalone mode, the module can also send a tag UID over TCP, REST API, MQTT or WebSockets, making it easy to integrate with IoT systems.

Our minimum order value is £50 but for small orders it may be cheaper to buy this product from our distributor partners: Digi-Key, RS Components or TME:

£46.90

Availability:

46 in stock (can be backordered)

SKU: 000461 Categories: HF (13.56 MHz), RFID Readers/Modules Tags: ADG1607, ESP32, MQTT, multiplexer, NFC, PN5180, reader, REST API, RFID, TCP Client, TCP Server, Web Socket, Wi-Fi, writer

The Pepper C1 MUX module is the multiplexed version of the Pepper C1 – the first Eccel Technology Ltd product with wireless connectivity capabilities. The user can connect up to 8 external (red) RFID antennas.

Wireless connectivity affords the customer free lifetime Over-the-Air updates, and of course the communication protocol can be used over TCP instead of the traditional UART/USB interface. Combining these features with standalone mode provides a “straight out of the box” ready to use device for many applications. In standalone mode, the module can also send a tag UID over MQTT or WebSockets, making it easy to integrate with IoT systems.

Since firmware version 1.5 changes to stand-alone mode now allows the user to configure the option to automatically transmit selected tag memory contents to the host via MQTT or WebSockets.

Our minimum order value is £50 but for small orders it may be cheaper to buy this product from our distributor partners: Digi-Key, RS Components or TME:

Dimensions	75 × 50 × 1.6 mm
Frequency	HF
Interface	MQTT, REST API, TCP Client, TCP Server, UART 3V3, WebSockets, Wi-Fi
RFID Tag Standard	ICODE SLI®, ICODE®, MIFARE Classic® 1K, MIFARE Classic® 4K, MIFARE Classic® Mini, MIFARE Ultralight®, MIFARE® DESFire®, NTAG2xx®

Firmware	Firmware (.bin file) & changelog
C1 Client	C1 client – the Windows application contains the protocol implementation and support for: – MIFARE® Classic® commands – MIFARE Ultralight® commands – MIFARE DESfire® commands – ICODE commands – network configuration commands – source code attached (QT/C++)
C1 Tool	C1-tool – the simple command line tool, contains the protocol implementation and examples for: – MIFARE® Classic® commands – MIFARE Ultralight® commands – MIFARE DESfire® commands – ICODE commands – network configuration commands
Arduino Library	Dedicated library for the Pepper C1 reader. Can be used also with all products from the C1 family, supporting ISO 14443A, MIFARE 1k, MIFARE 4k, Ultralight, NTAG2XX card/tag types, MIFARE DESFire, ISO 15693, ICODE.
STEP file	3D model
Android app	Pepper C1 Configurator. In this app you can: – Setup WiFi parameters for your network and connect your device. – Check for latest versions and where necessary download firmware updates. – Perform simple RFID functionality tests.

Pepper C1 MUX UART

PARAMETERS

DATASHEET

DOWNLOADS
